65 ± 5 parameter Hardness image
4 parameter Thickness image
6.1 parameter Basis weight image

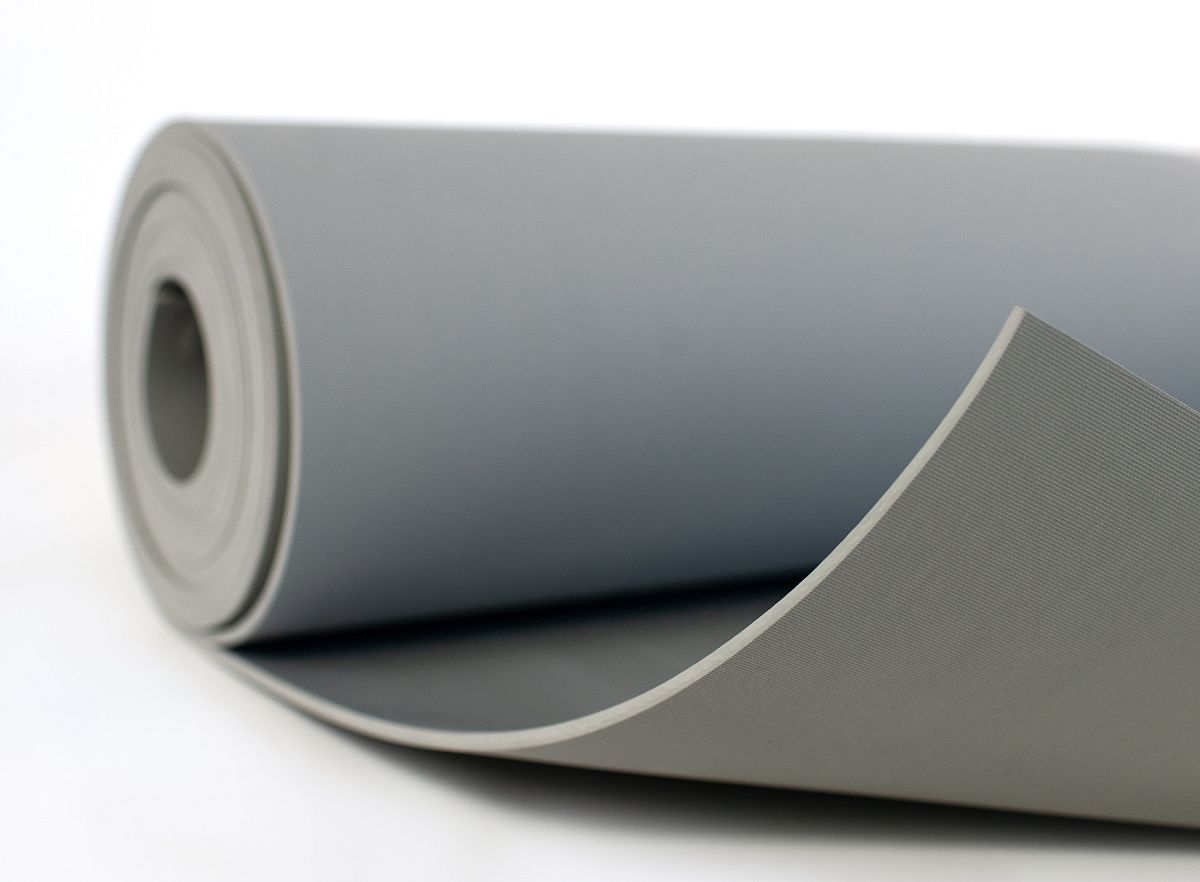

Electrical insulating matting certified according to IEC 61111:2009 in class 4, with an operating voltage of 36,000 V, a test voltage of 40,000 V and a withstanding voltage of 50,000 V, with permanently vulcanized marking tape. Vulcanized elastomer smooth is available in gray color, 4 mm thick (+0.6/-0.2mm) with basic weight 6.1 kg/m2.

DOTVORTE SVOJU ŠPECIFIKÁCIU:

Krok 1


Krok 3


Tolerancia: (+/- 10 mm)

Krok 2


Tolerancia: -

Krok 4


Tolerancia: (+/- 200 mm)

Krok 5




Krok 6

Krok 7



Produkt DK idtrieda 04 - varianty

DK

Id Cislo polozky Stare cislo Skupina Typ Idtrieda Kaucuk Dezen Farba Dlzka Sirka Hrubka Hrubka popis Hmotnost Hustota Pocet vloziek Pocet otlackov
1165 DK_04_01_H1_1_04-0 DEK4-H-1 DK 04 SBR-NR H1 grey 10 1000 4 (+ 0,6/- 0,2 mm) 6.1
1166 DK_04_01_H1_1_04-0 DEK4-H-1 DK 04 SBR-NR H1 grey 10 1200 4 (+ 0,6/- 0,2 mm) 6.1
{* *} {* *}
