parameter TD - general use - small icon image
parameter Environment image
80 ± 5 parameter Hardness image
4 parameter Tensile strength image
1,55 parameter Density image
100 parameter Elongation image
-25 — +80 parameter Temperature range image
1 — 15 parameter Thickness image

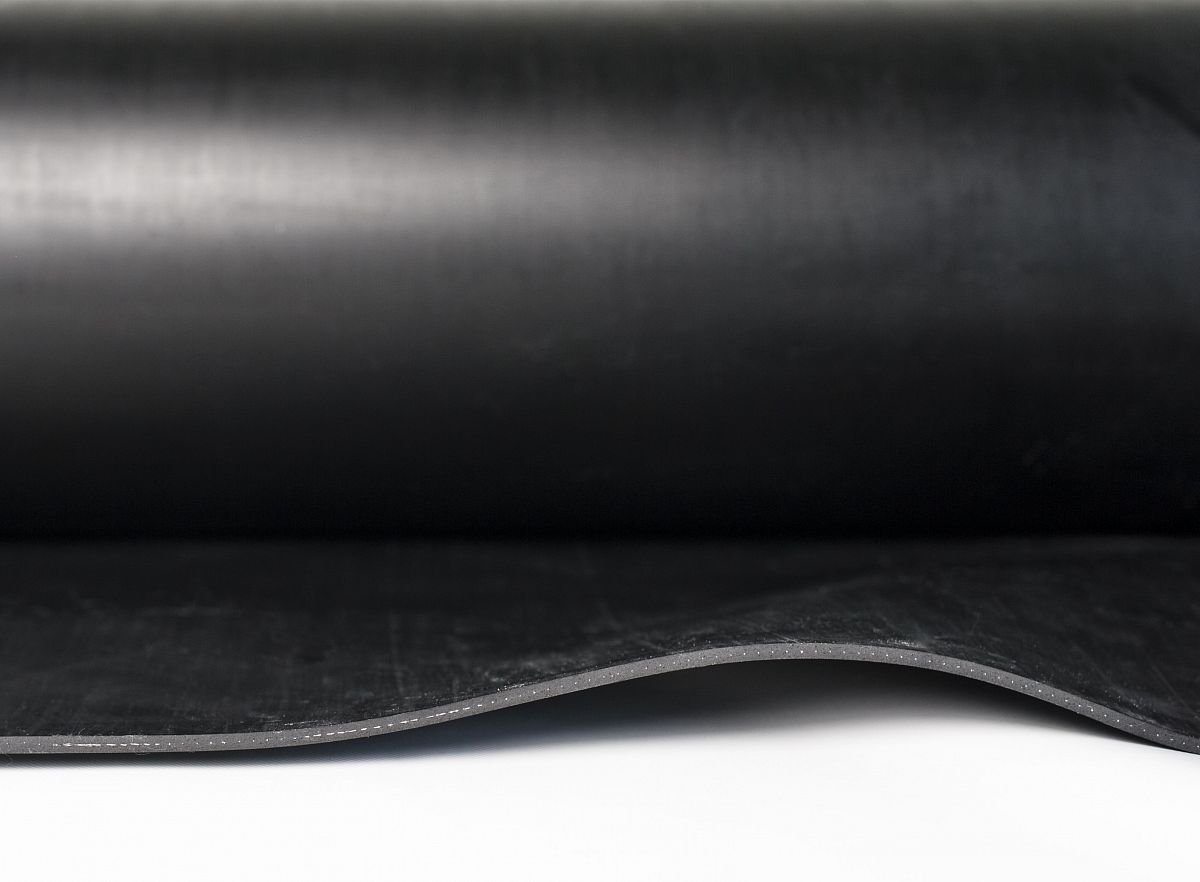

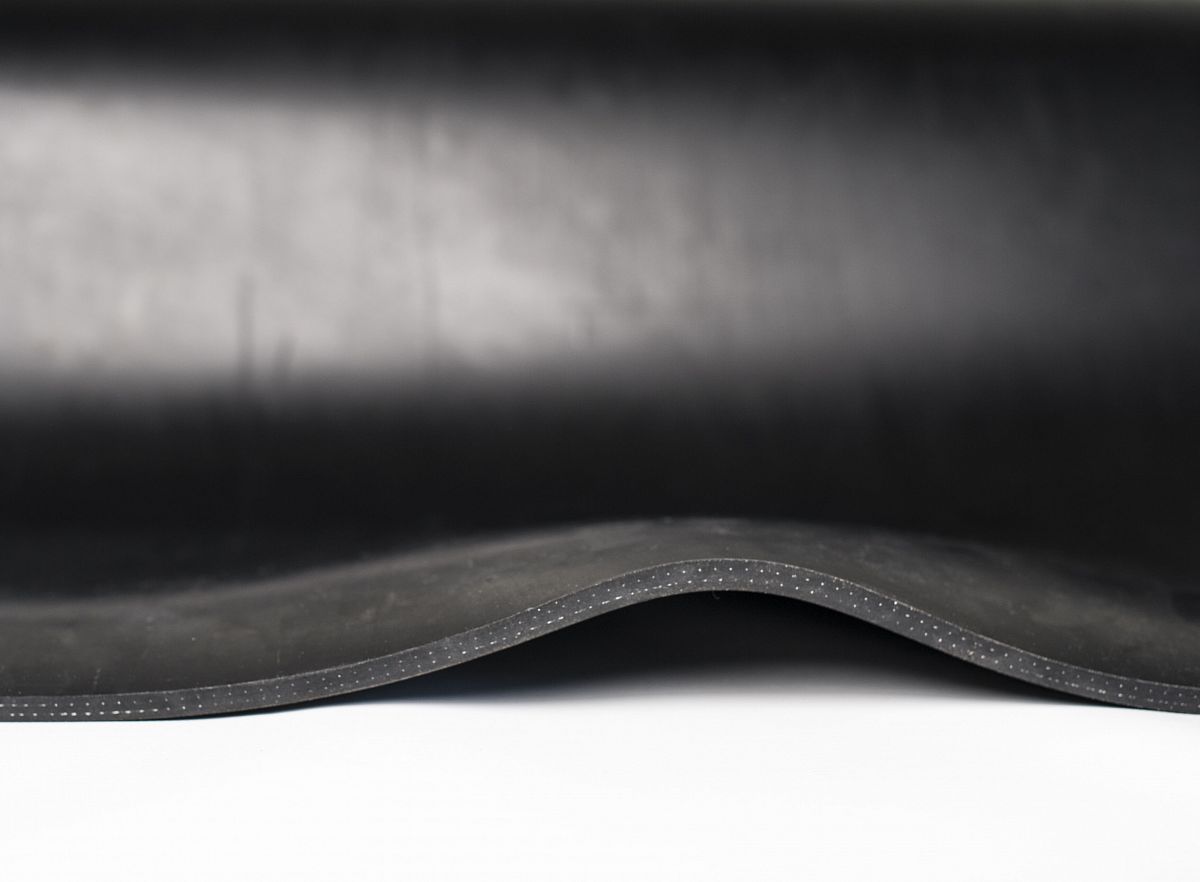

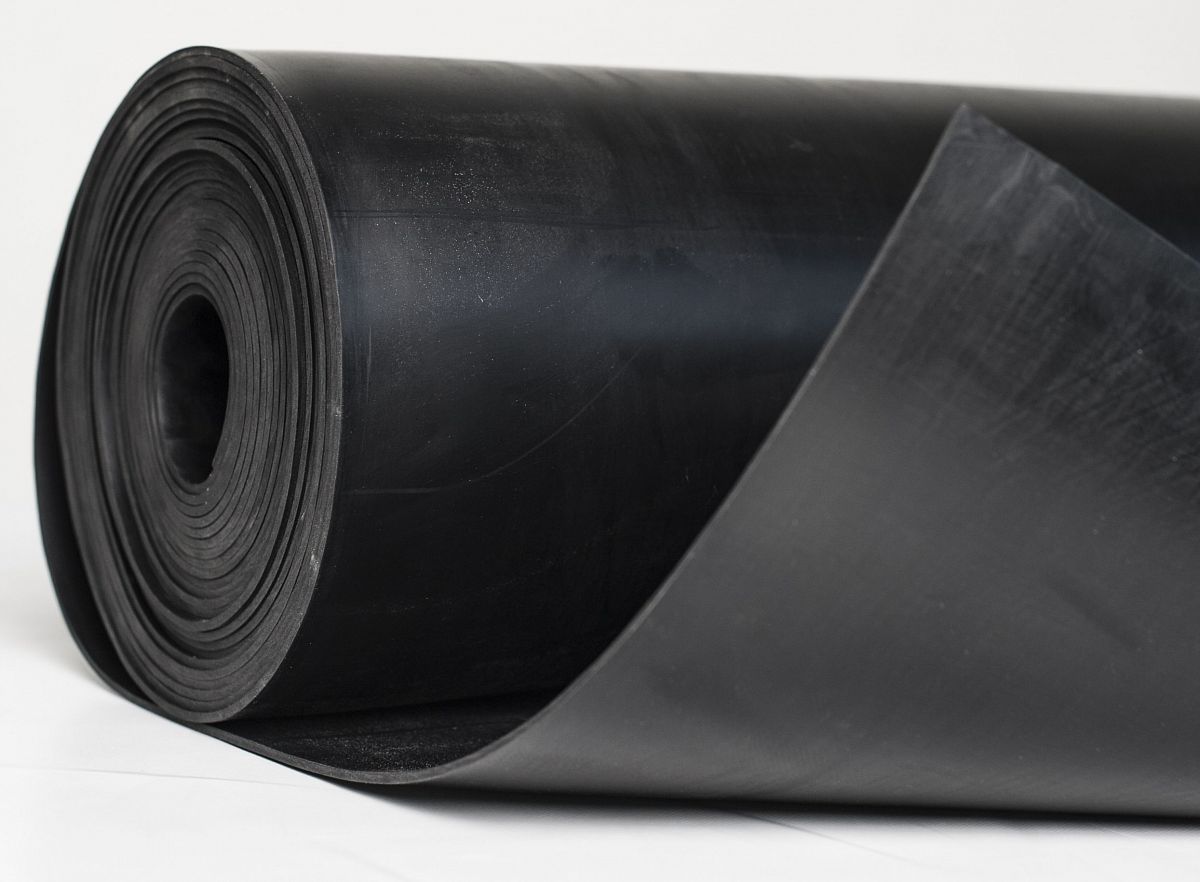

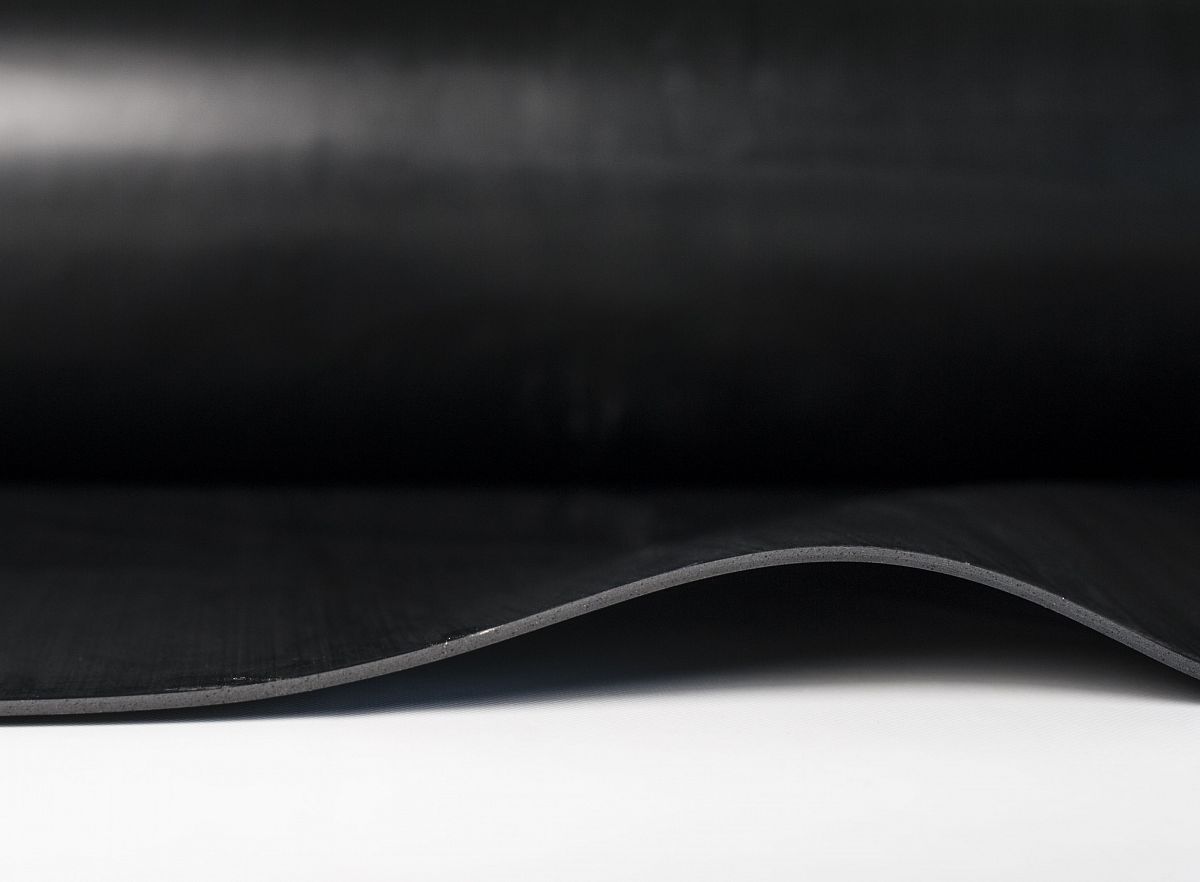

Sealing plate intended for general use without special requirements for resistance to negative environmental influences. Made on the basis of the SBR rubber compound in black. With the possibility of specifying the required thickness (1 - 15 mm), width (1,200 - 1,400 mm) and number of inserts (0 - 2 pcs). Click and choose. Complete the exact specification in the configurator.

Complete your specification:

Step 1


Tolerance -

Step 2


Step 3


Tolerance (+/- 10 mm)

Step 4


Step 5


Tolerance (+/- 200 mm)

Step 6




Step 7

Step 8



Produkt TD pouzitie všeobecné použitie - varianty

TD

Id Cislo polozky Stare cislo Skupina Typ Idtrieda Kaucuk Dezen Farba Dlzka Sirka Hrubka Hrubka popis Hmotnost Hustota Pocet vloziek Pocet otlackov
109 TD_7759_00_0_01-0 TD 7759 TD 7759 SBR black 20 1200 1 (+/- 0,2 mm)  1.5 1,55 00 0
110 TD_7759_00_0_01-0 TD 7759 TD 7759 SBR black 20 1400 1 (+/- 0,2 mm)  1.5 1,55 00 0
113 TD_7759_00_0_01-5 TD 7759 SBR black 20 1200 1,5 (+/- 0,2 mm)  2 1,55 00 0
114 TD_7759_00_0_01-5 TD 7759 SBR black 20 1400 1,5 (+/- 0,2 mm)  2 1,55 00 0
117 TD_7759_00_0_02-0 TD 7759 TD 7759 SBR black 10 1200 2 (+/- 0,2 mm)  3.3 1,55 00 0
118 TD_7759_00_0_02-0 TD 7759 TD 7759 SBR black 10 1400 2 (+/- 0,2 mm)  3.3 1,55 00 0
119 TD_7759_1T_0_02-0 TD 7759 TD 7759 SBR black 10 1200 2 (+/- 0,2 mm)  3.3 1,55 1T 0
120 TD_7759_1T_0_02-0 TD 7759 TD 7759 SBR black 10 1400 2 (+/- 0,2 mm)  3.3 1,55 1T 0
121 TD_7759_00_0_03-0 TD 7759 TD 7759 SBR black 10 1200 3 (+/- 0,3 mm) 5 1,55 00 0
122 TD_7759_00_0_03-0 TD 7759 TD 7759 SBR black 10 1400 3 (+/- 0,3 mm) 5 1,55 00 0
123 TD_7759_1T_0_03-0 TD 7759 TD 7759 SBR black 10 1200 3 (+/- 0,3 mm) 5 1,55 1T 0
124 TD_7759_1T_0_03-0 TD 7759 TD 7759 SBR black 10 1400 3 (+/- 0,3 mm) 5 1,55 1T 0
125 TD_7759_2T_0_03-0 TD 7759 TD 7759 SBR black 10 1200 3 (+/- 0,3 mm) 5 1,55 2T 0
126 TD_7759_2T_0_03-0 TD 7759 TD 7759 SBR black 10 1400 3 (+/- 0,3 mm) 5 1,55 2T 0
127 TD_7759_00_0_04-0 TD 7759 TD 7759 SBR black 10 1200 4 (+/- 0,4 mm) 6.5 1,55 00 0
128 TD_7759_00_0_04-0 TD 7759 TD 7759 SBR black 10 1400 4 (+/- 0,4 mm) 6.5 1,55 00 0
129 TD_7759_1T_0_04-0 TD 7759 TD 7759 SBR black 10 1200 4 (+/- 0,4 mm) 6.5 1,55 1T 0
137 TD_7759_2T_0_05-0 TD 7759 TD 7759 SBR black 10 1200 5 (+/- 0,5 mm) 7.9 1,55 2T 0
138 TD_7759_2T_0_05-0 TD 7759 TD 7759 SBR black 10 1400 5 (+/- 0,5 mm) 7.9 1,55 2T 0
139 TD_7759_00_0_06-0 TD 7759 TD 7759 SBR black 10 1200 6 (+/- 0,5 mm) 9.7 1,55 00 0
140 TD_7759_00_0_06-0 TD 7759 TD 7759 SBR black 10 1400 6 (+/- 0,5 mm) 9.7 1,55 00 0
141 TD_7759_1T_0_06-0 TD 7759 TD 7759 SBR black 10 1200 6 (+/- 0,5 mm) 9.7 1,55 1T 0
142 TD_7759_1T_0_06-0 TD 7759 TD 7759 SBR black 10 1400 6 (+/- 0,5 mm) 9.7 1,55 1T 0
143 TD_7759_2T_0_06-0 TD 7759 TD 7759 SBR black 10 1200 6 (+/- 0,5 mm) 9.7 1,55 2T 0
144 TD_7759_2T_0_06-0 TD 7759 TD 7759 SBR black 10 1400 6 (+/- 0,5 mm) 9.7 1,55 2T 0
145 TD_7759_00_0_08-0 TD 7759 TD 7759 SBR black 10 1200 8 (+/- 0,6 mm) 12.9 1,55 00 0
146 TD_7759_00_0_08-0 TD 7759 TD 7759 SBR black 10 1400 8 (+/- 0,6 mm) 12.9 1,55 00 0
147 TD_7759_1T_0_08-0 TD 7759 SBR black 10 1200 8 (+/- 0,6 mm) 12.9 1,55 1T 0
148 TD_7759_1T_0_08-0 TD 7759 SBR black 10 1400 8 (+/- 0,6 mm) 12.9 1,55 1T 0
149 TD_7759_2T_0_08-0 TD 7759 TD 7759 SBR black 10 1200 8 (+/- 0,6 mm) 13 1,55 2T 0
150 TD_7759_2T_0_08-0 TD 7759 TD 7759 SBR black 10 1400 8 (+/- 0,6 mm) 13 1,55 2T 0
151 TD_7759_00_0_10-0 TD 7759 TD 7759 SBR black 10 1200 10 (+/- 0,6 mm) 17 1,55 00 0
152 TD_7759_00_0_10-0 TD 7759 TD 7759 SBR black 10 1400 10 (+/- 0,6 mm) 17 1,55 00 0
153 TD_7759_1T_0_10-0 TD 7759 TD 7759 SBR black 10 1200 10 (+/- 0,6 mm) 17 1,55 1T 0
154 TD_7759_1T_0_10-0 TD 7759 TD 7759 SBR black 10 1400 10 (+/- 0,6 mm) 17 1,55 1T 0
155 TD_7759_2T_0_10-0 TD 7759 TD 7759 SBR black 10 1200 10 (+/- 0,6 mm) 17 1,55 2T 0
156 TD_7759_2T_0_10-0 TD 7759 TD 7759 SBR black 10 1400 10 (+/- 0,6 mm) 17 1,55 2T 0
157 TD_7759_00_0_12-0 TD 7759 TD 7759 SBR black 5 1200 12 (+/- 1,0 mm) 20.2 1,55 00 0
158 TD_7759_00_0_12-0 TD 7759 TD 7759 SBR black 5 1400 12 (+/- 1,0 mm) 20.2 1,55 00 0
159 TD_7759_1T_0_12-0 TD 7759 SBR black 5 1200 12 (+/- 1,0 mm) 18.6 1,55 1T 0
160 TD_7759_1T_0_12-0 TD 7759 SBR black 5 1400 12 (+/- 1,0 mm) 18.6 1,55 1T 0
161 TD_7759_2T_0_12-0 TD 7759 SBR black 5 1200 12 (+/- 1,0 mm) 18.6 1,55 2T 0
162 TD_7759_2T_0_12-0 TD 7759 SBR black 5 1400 12 (+/- 1,0 mm) 18.6 1,55 2T 0
163 TD_7759_00_0_15-0 TD 7759 TD 7759 SBR black 5 1200 15 (+/- 1,0 mm) 25 1,55 00 0
164 TD_7759_00_0_15-0 TD 7759 TD 7759 SBR black 5 1400 15 (+/- 1,0 mm) 25 1,55 00 0
165 TD_7759_1T_0_15-0 TD 7759 TD 7759 SBR black 5 1200 15 (+/- 1,0 mm) 23.2 1,55 1T 0
166 TD_7759_1T_0_15-0 TD 7759 TD 7759 SBR black 5 1400 15 (+/- 1,0 mm) 23.2 1,55 1T 0
167 TD_7759_2T_0_15-0 TD 7759 SBR black 5 1200 15 (+/- 1,0 mm) 23.2 1,55 2T 0
168 TD_7759_2T_0_15-0 TD 7759 SBR black 5 1400 15 (+/- 1,0 mm) 23.2 1,55 2T 0
