DEK3-S7-IR | BOGUMA.sk

Browse other product variants

DEK3-H0-1

DEK3-H1-1

DEK3-S1-2

Environment

65 ± 5 parameter Hardness

Hardness

3.5

Thickness

Basis weight

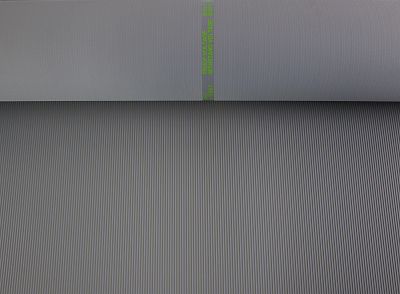

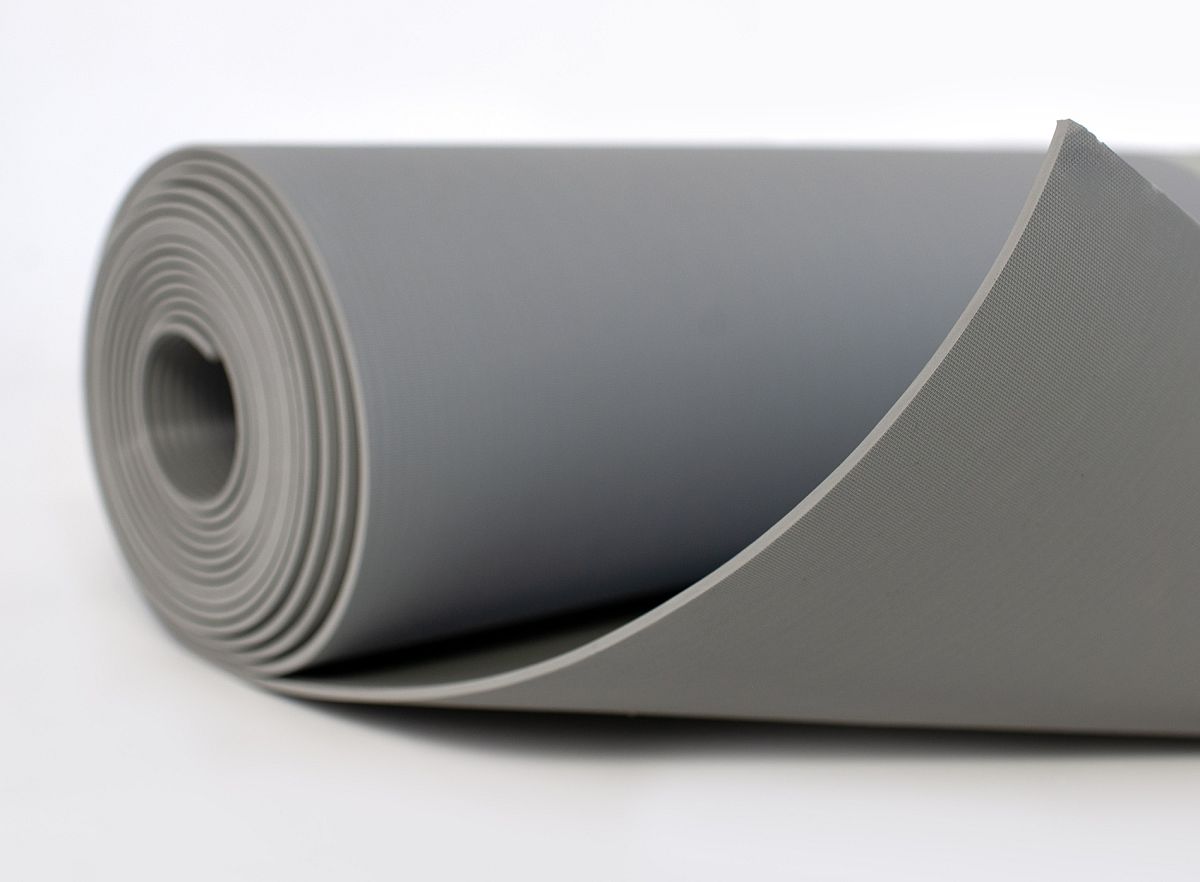

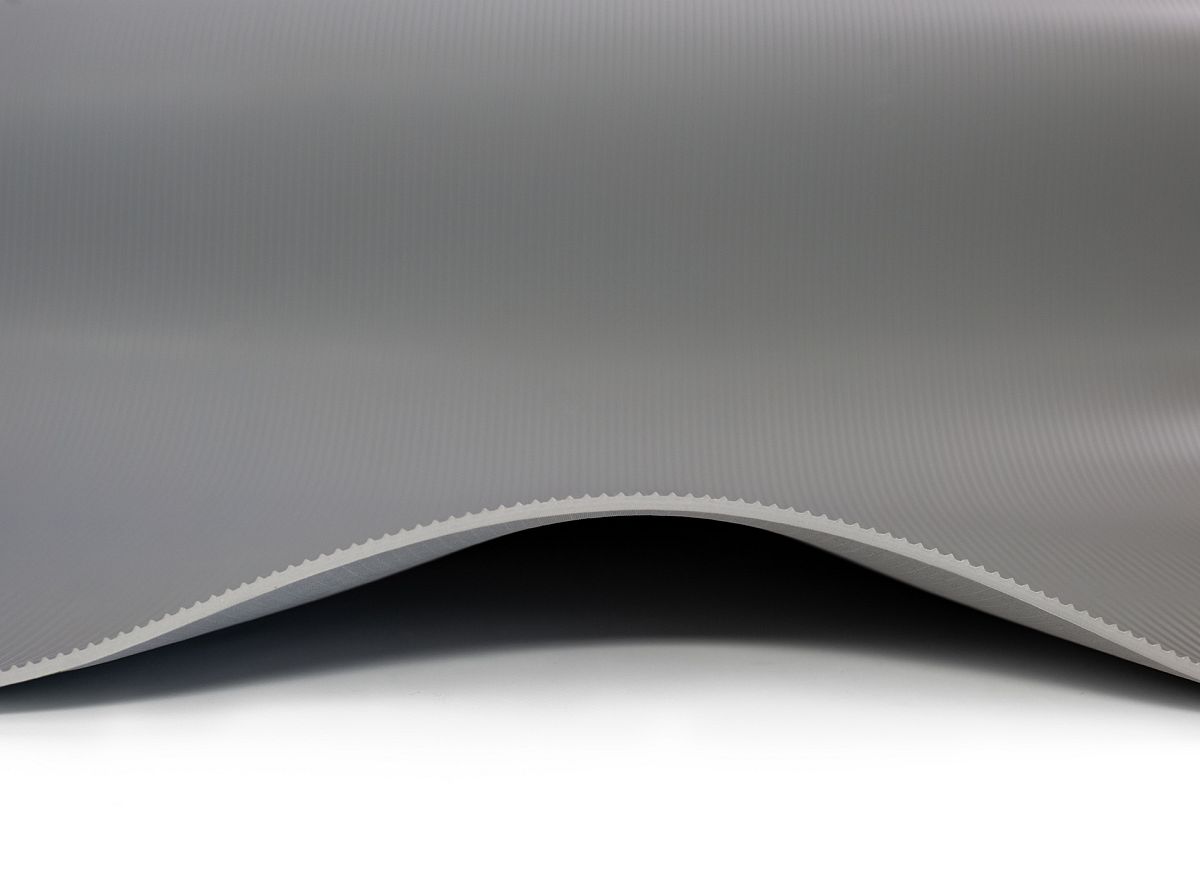

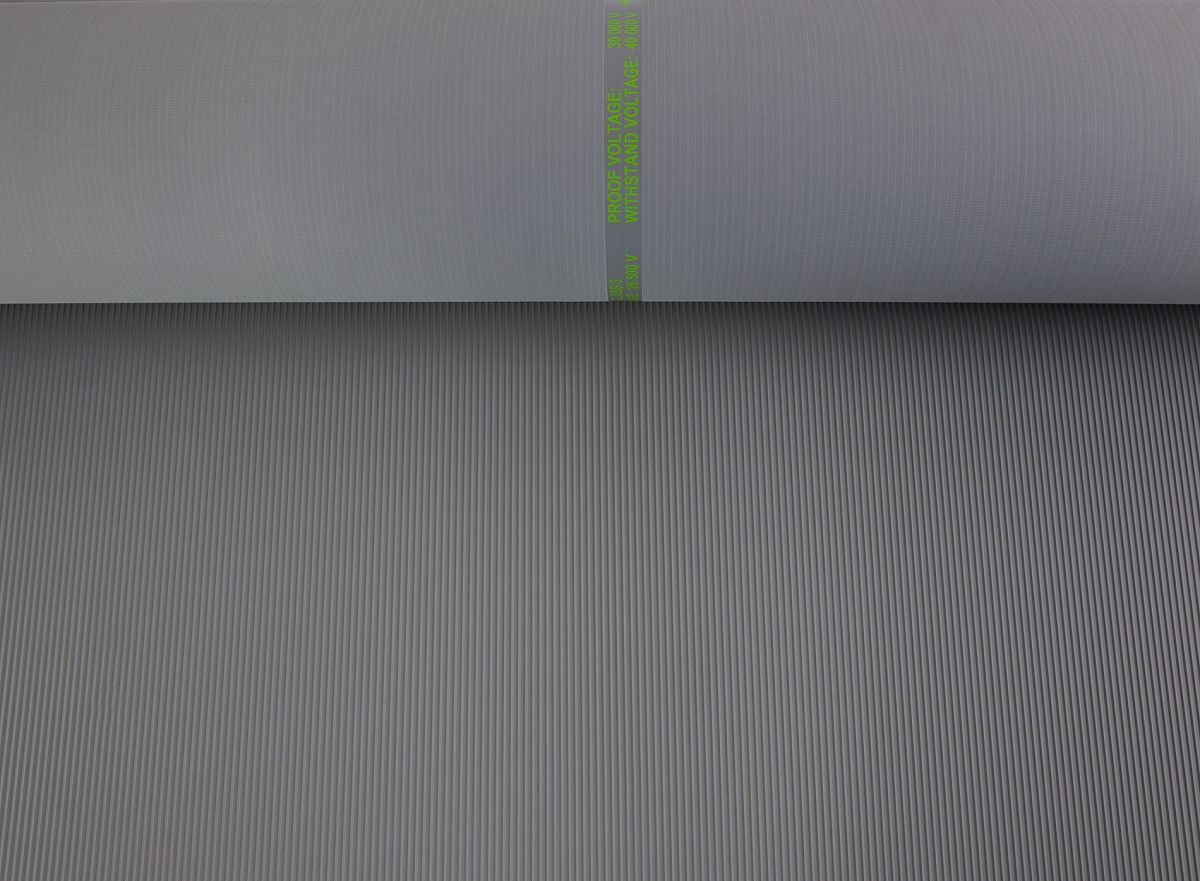

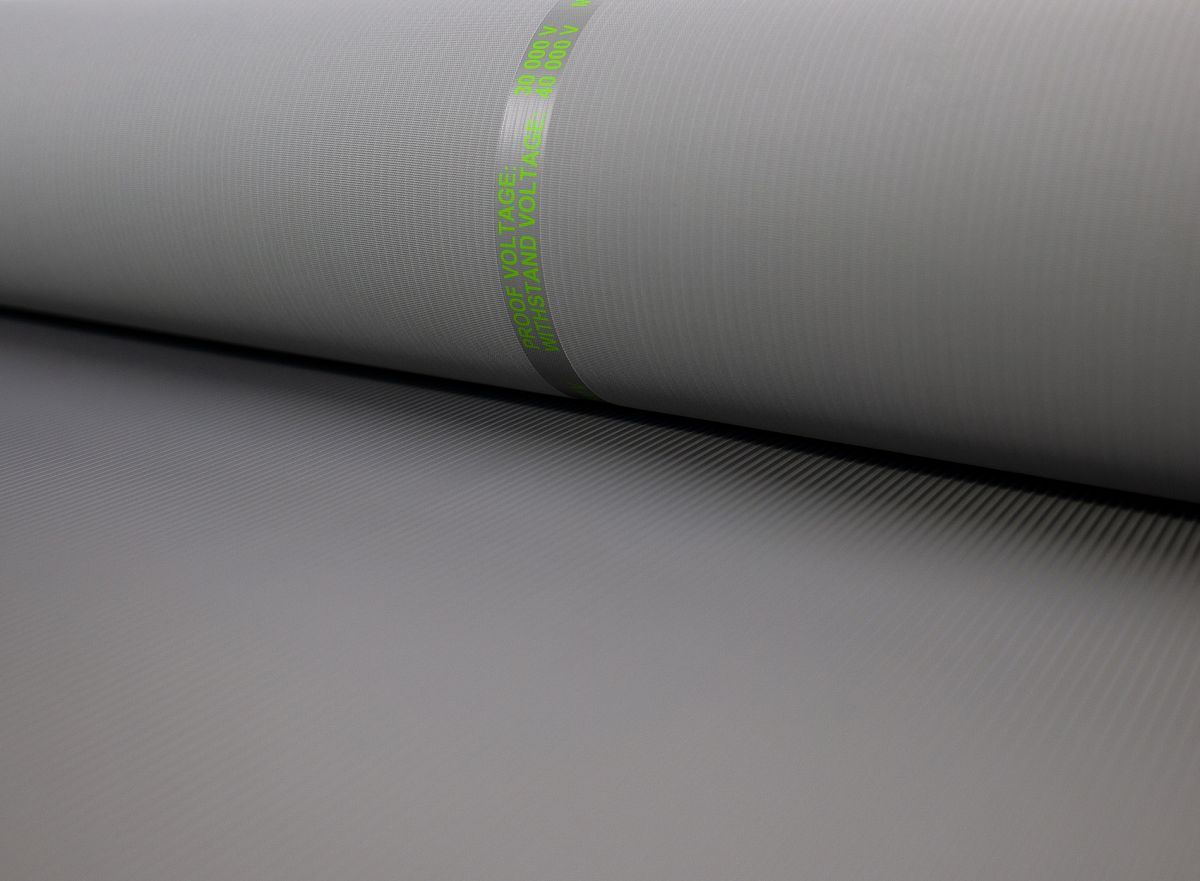

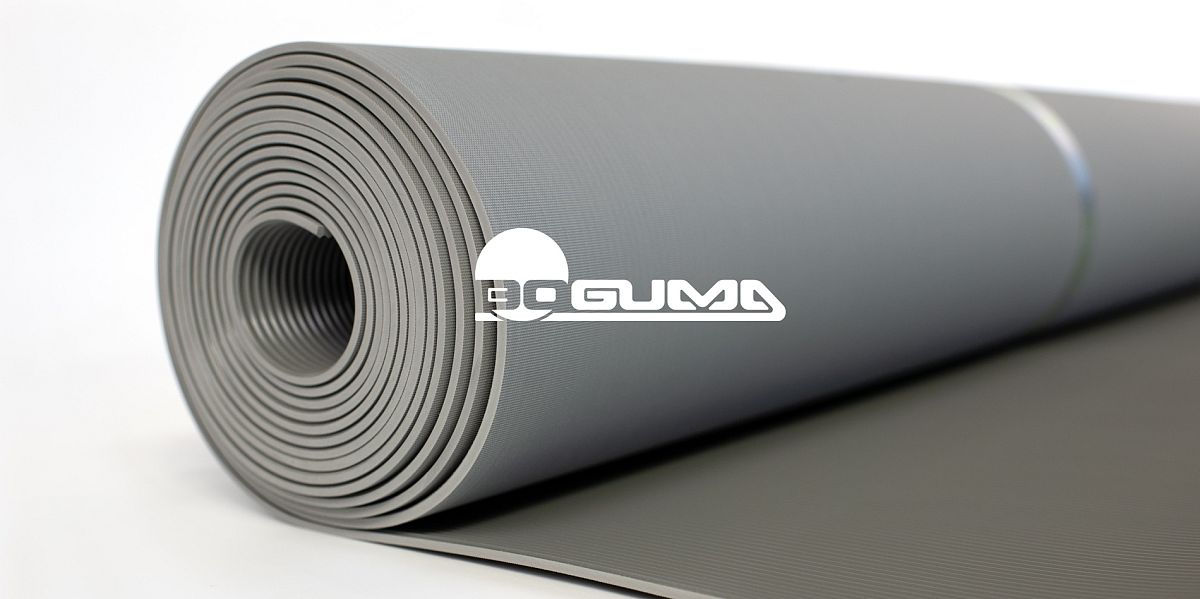

Electrical insulating matting certified according to IEC 61111:2009 in class 3, with an operating voltage of 26,500 V, a test voltage of 30,000 V and a withstanding voltage of 40,000 V, with permanently vulcanized marking tape. Vulcanized elastomer fine grooved is available in gray color, 3.5 mm thick (+0.6/-0.2mm) with basic weight 5 kg/m².

Datasheet - DEK3-S7-IR - EN

Complete your specification:

Step 1

CHOOSE THE COLOR

Step 3

SELECT WIDTH [mm]

Tolerance (+/- 10 mm)

Step 2

SELECT THICKNESS [mm]

Tolerance -

Step 4

SELECT LENGTH [m]

Tolerance (+/- 200 mm)

Step 5

NUMBER OF ROLLS
REQUIRED QUANTITY IN M2
WEIGHT IN KG

Step 6

Enter specific requirements

Step 7

Company Name
E-mail
Phone number

I agree to the use of the above data in order to prepare a quotation.

Produkt DK idtrieda 03 - varianty

Id	Cislo polozky	Stare cislo	Skupina	Idtrieda	Kaucuk	Dezen	Farba	Dlzka	Sirka	Hrubka	Hrubka popis	Hmotnost
1375	DK_03_IR_S7_1_03-5	DEK3-S7-IR	DK	03	IR	S7	grey	10	1000	3,5	(+ 0,6 /- 0,2 mm)	5
1376	DK_03_IR_S7_1_03-5	DEK3-S7-IR	DK	03	IR	S7	grey	10	1200	3,5	(+ 0,6 /- 0,2 mm)	5
1377	DK_03_I8_S7_1_03-5	DEK3-S7-IR	DK	03	IR	S7	dark grey	10	1000	3,5	(+ 0,6 /- 0,2 mm)	5
1378	DK_03_I8_S7_1_03-5	DEK3-S7-IR	DK	03	IR	S7	dark grey	10	1200	3,5	(+ 0,6 /- 0,2 mm)	5
