1 parameter Thickness image
1.4 parameter Basis weight image
60 ± 5 parameter Hardness image
16 parameter Tensile strength image

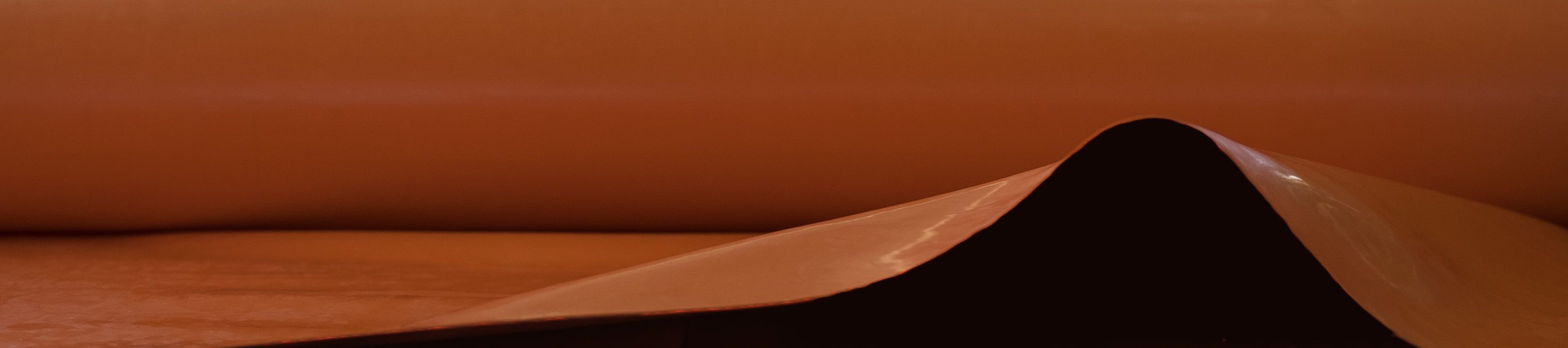

Electrical insulation blanket EIP0-1,0x0 is a flexible covering material made of high-quality EPDM elastomer used to cover wires that are powered under voltage or grounded, suitable for interior and exterior environments. It is made in a thickness of 1.0 mm (+0.3; -0.1) and widths of 1000 - 1200 mm. We deliver it in rolls of 10 m length. It has a smooth surface on both sides. It is marked along the entire length of the board with a marking tape according to the corresponding electrical class (class 0 - red tape).

The electrical insulation blanket EIP0-1,0x0 is certified according to the IEC 61112:2009 standard in class 0, with a specified working voltage for direct current 1500 V and for alternating current 1000 V. Also certified according to category A and Z, i.e. resistant to acids and ozone.

Tensile strength reaches at least 16 MPa and tear resistance is at least 500%.

Complete your specification:

Step 1


Tolerance (+/- 10 mm)

Step 2


Tolerance (+/- 200 mm)

Step 3




Step 4

Step 5



Produkt EIP idtrieda 00 - varianty

EIP

Id Cislo polozky Stare cislo Skupina Typ Idtrieda Kaucuk Dezen Farba Dlzka Sirka Hrubka Hrubka popis Hmotnost Hustota Pocet vloziek Pocet otlackov
1359 EP_60_11_H0_0_01-0 EIP0-1,0x0 EIP 00 SBR-NR-EPDM H0 salmon 10 1000 1,0 (+0,3 mm/- 0,1 mm)  1.4 1,4
1360 EP_60_11_H0_0_01-0 EIP0-1,0x0 EIP 00 SBR-NR-EPDM H0 salmon 10 1200 1,0 (+0,3 mm/- 0,1 mm)  1.4 1,4
