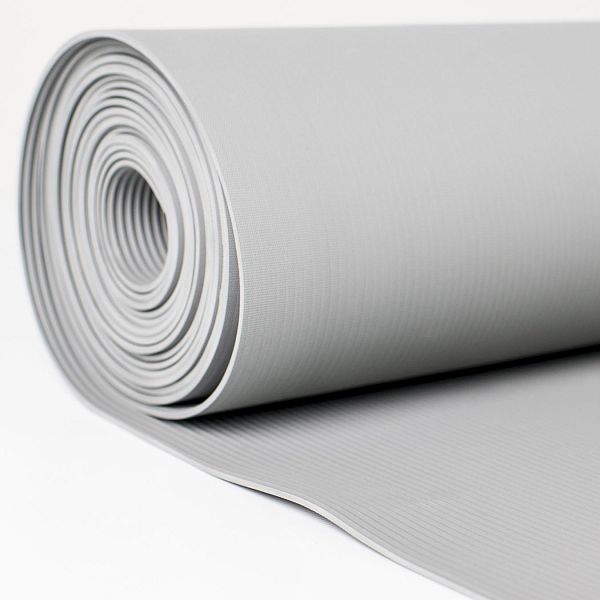

Switchboard mattings are used as insulation layer for individual and collective protection in transformer, electrical distribution stations at high-voltage workplaces or in front of electrical switchboards in buildings.
The products are certified according to the European standard IEC 61111:2009 in four classes (0, 2, 3 and 4) with an operating voltage in the range from 1 000V to 36 000V.
Marking is done by precuring a lengthwise marking tape covering the entire roll length. This way of marking is durable and unerasable.
![layout element background image](/images/podklad_ikony.jpg)
![layout element image](/media/layout/800/1614787443-8183-class_0.png)
Working voltage: 1 000 V
Proof voltage: 5 000 V
Withstand voltage: 10 000 V
![layout element image](/media/layout/800/1614787478-1464-class_2.png)
Working voltage: 17 000 V
Proof voltage: 20 000 V
Withstand voltage: 30 000 V
![layout element image](/media/layout/800/1614787523-1326-class_3.png)
Working voltage: 26 500 V
Proof voltage: 30 000 V
Withstand voltage: 40 000 V
![layout element image](/media/layout/800/1614787556-6142-class_4.png)
Working voltage: 36 000 V
Proof voltage: 40 000 V
Withstand voltage: 50 000 V
-
Electrical insulating matting Class 0 fine ribbed - S7
Electrical insulating matting certified according to IEC 61111:2009 in class 0, with an operating voltage of 1,000 V, a test voltage of 5,000 V and a withstanding voltage of 10,000 V, with permanently vulcanized marking tape. Vulcanized elastomer fine grooved is available in black, gray and dark gray color, 3 - 6 mm thick with basic weighs 3,3 - 8,3 kg/m2.
3 — 63.3 — 8.3
-
Electrical insulating matting Class 2 fine ribbed - S7
Electrical insulating matting certified according to IEC 61111:2009 in class 2, with an operating voltage of 17 000 V, a test voltage of 20 000 V and a withstanding voltage of 30 000 V, with permanently vulcanized marking tape. Vulcanized elastomer fine grooved is available in gray, dark gray and yellow color, 3 mm thick with basic weighs 3,4 kg/m2.
33.4
-
Electrical insulating matting Class 3 smooth or wide ribbed - S1
Electrical insulating matting certified according to IEC 61111:2009 in class 3, with an operating voltage of 26 500 V, a test voltage of 30 000 V and a withstanding voltage of 40 000 V, with permanently vulcanized marking tape. Vulcanized elastomer smooth or wide grooved is available in gray or black color, 3 or 5 mm thick with basic weighs 4,6 or 6,9 kg/m2.
3 — 54.6 — 6.9
-
Electrical insulating matting Class 4 smooth or fine ribbed - S7
Electrical insulating matting certified according to IEC 61111:2009 in class 4, with an operating voltage of 36 000 V, a test voltage of 40 000 V and a withstanding voltage of 50 000 V, with permanently vulcanized marking tape. Vulcanized elastomer smooth or fine grooved is available in gray color, 4 or 4,5 mm thick with basic weighs 6,1 kg/m2.
4 — 4.56.1
