parameter DEK class 0 - small icon  image
parameter REACH image
parameter HALOGEN FREE image
parameter Environment  image
3 parameter Thickness image
3.3 parameter Basis weight image
65 ± 5 parameter Hardness image

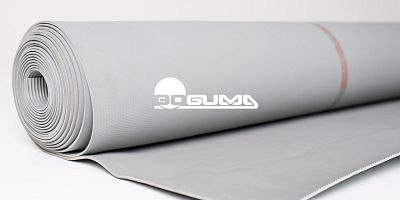

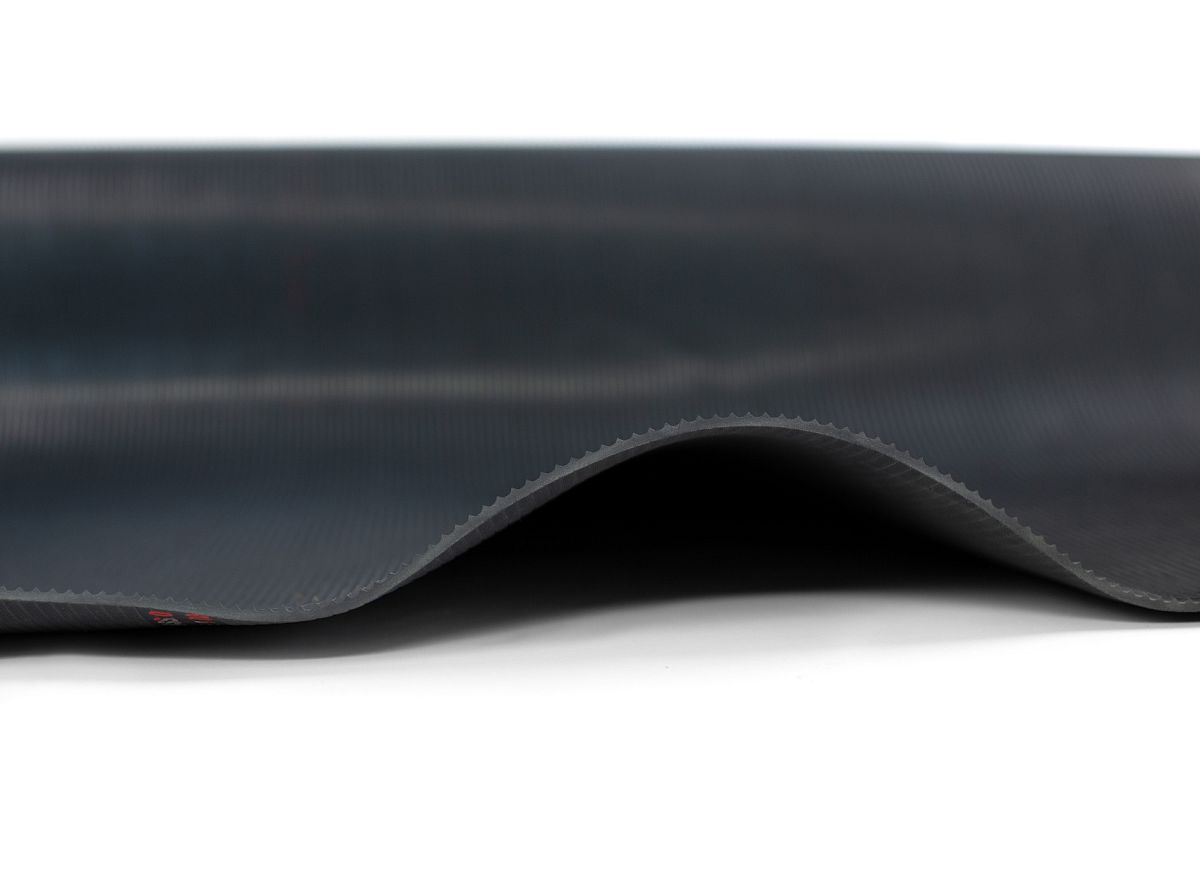

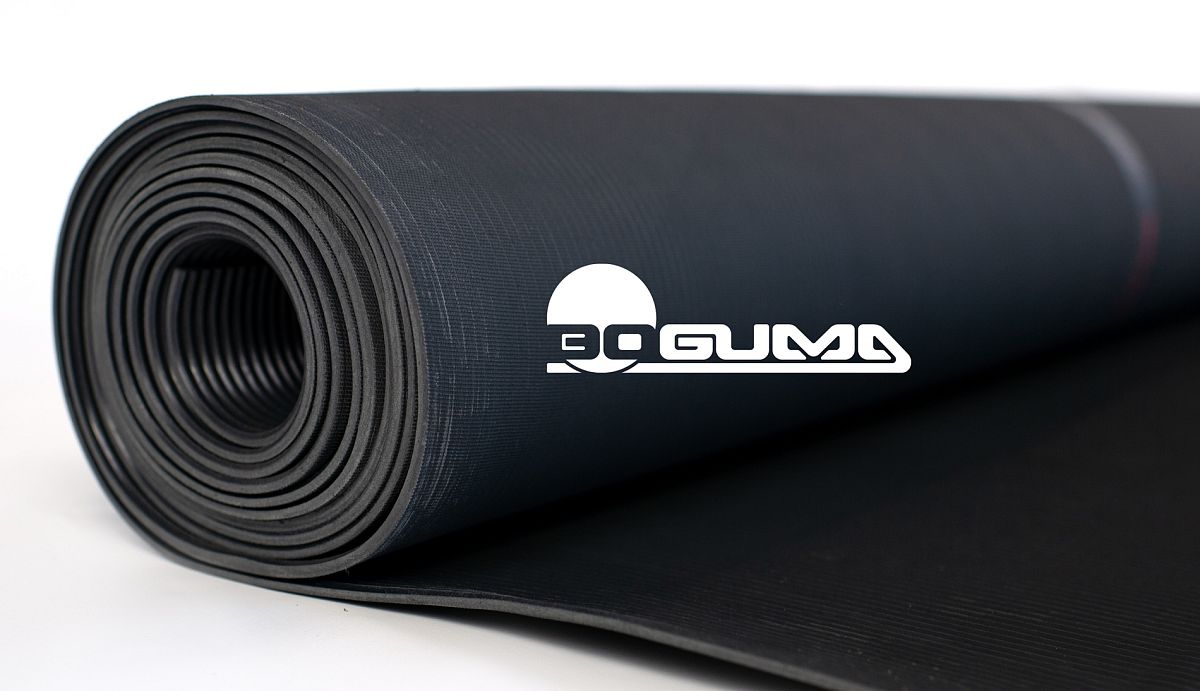

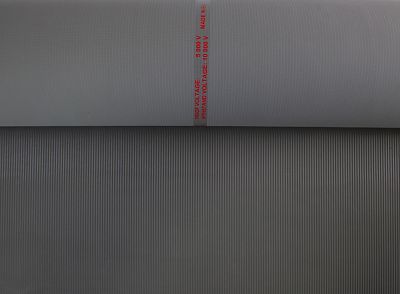

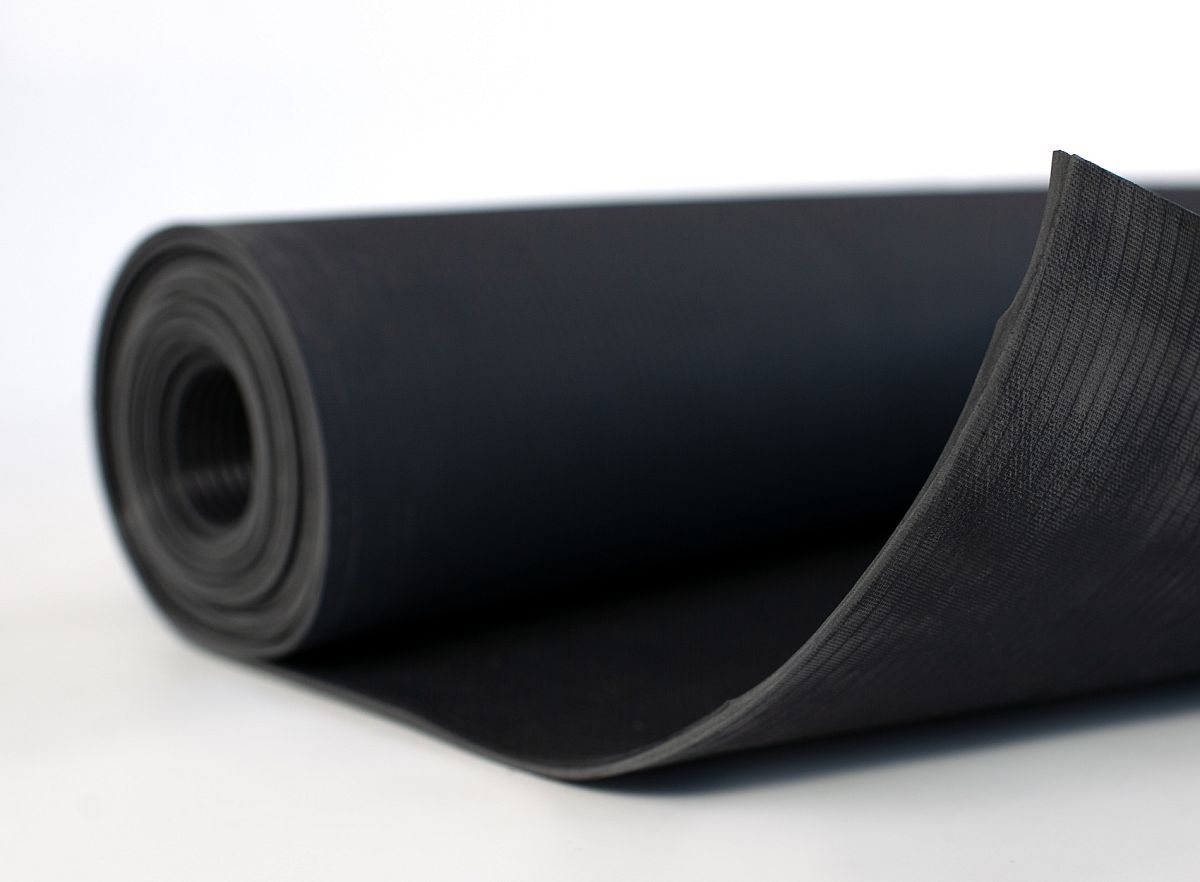

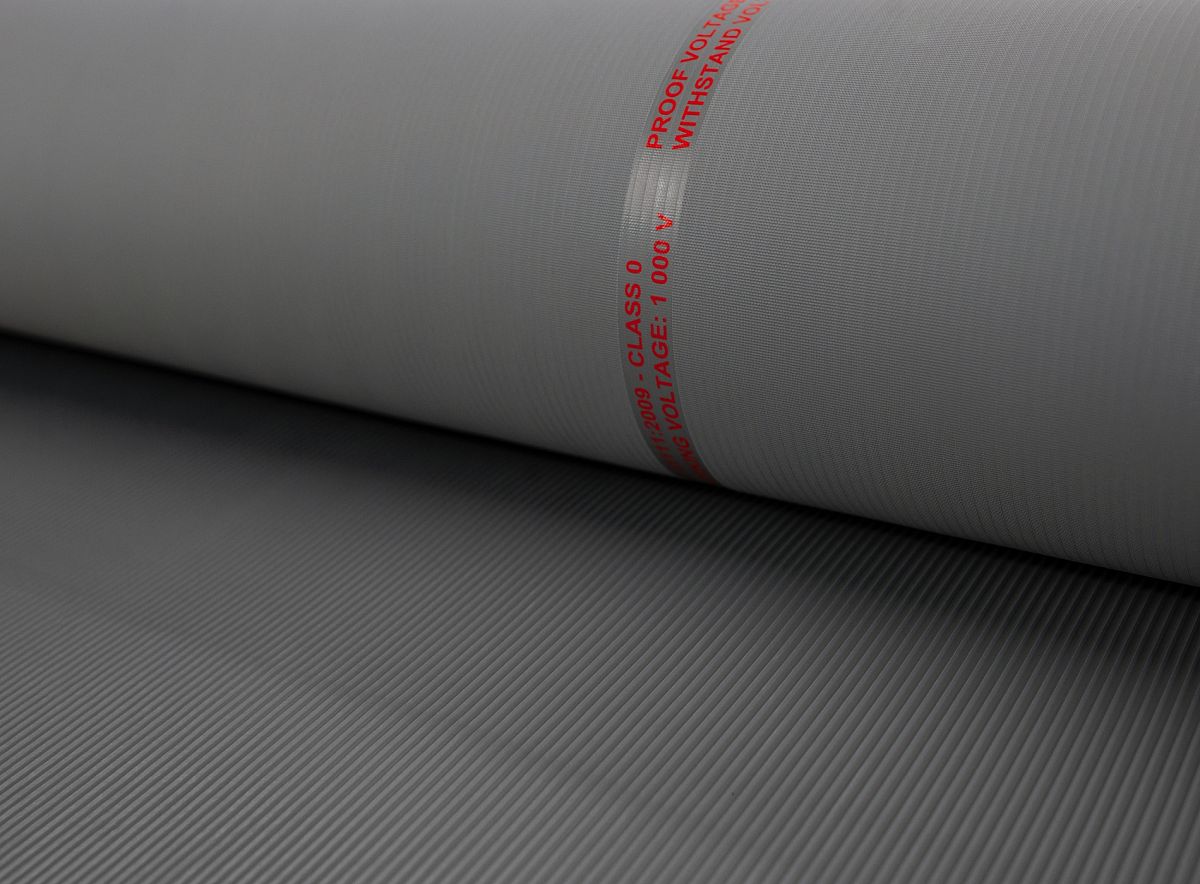

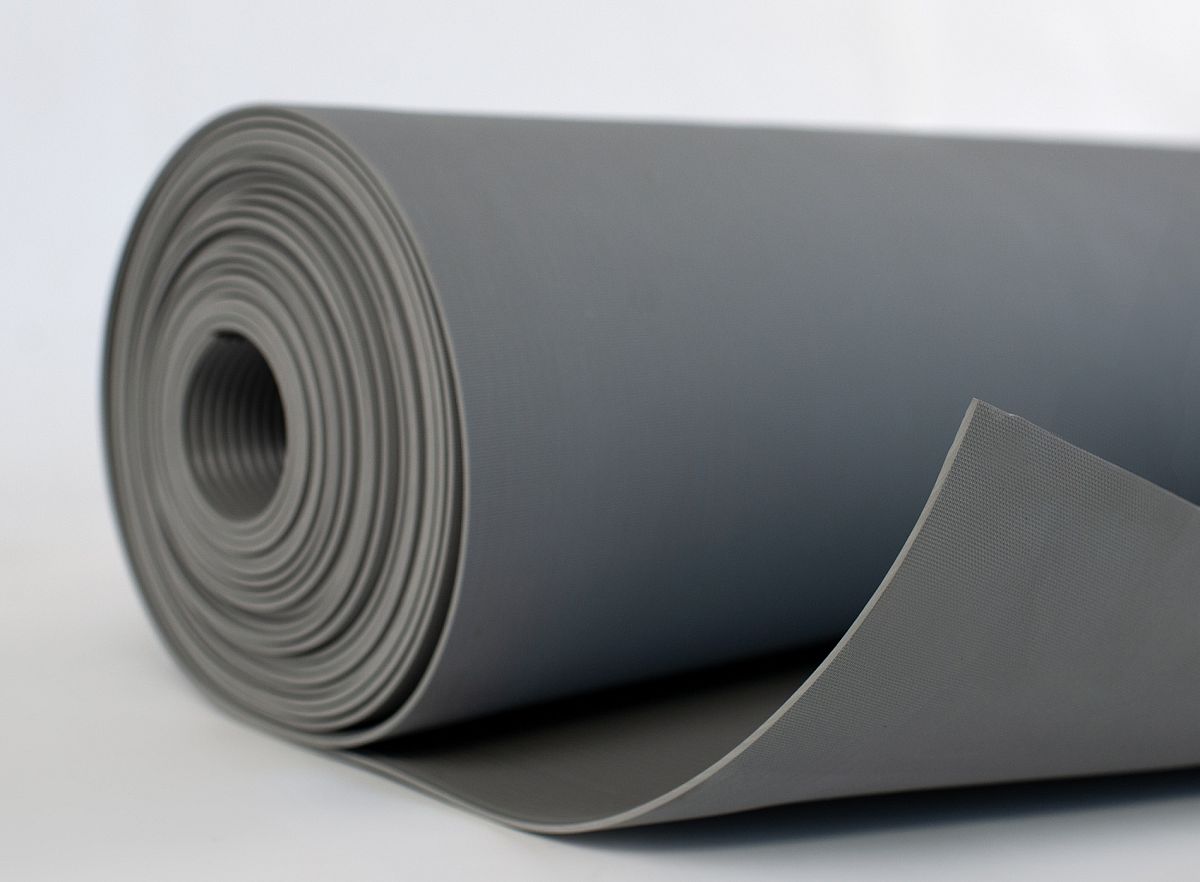

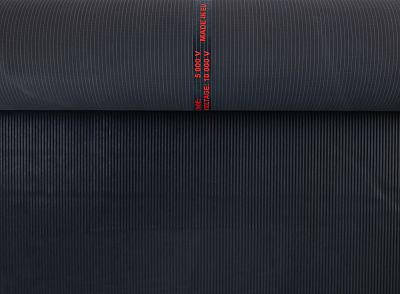

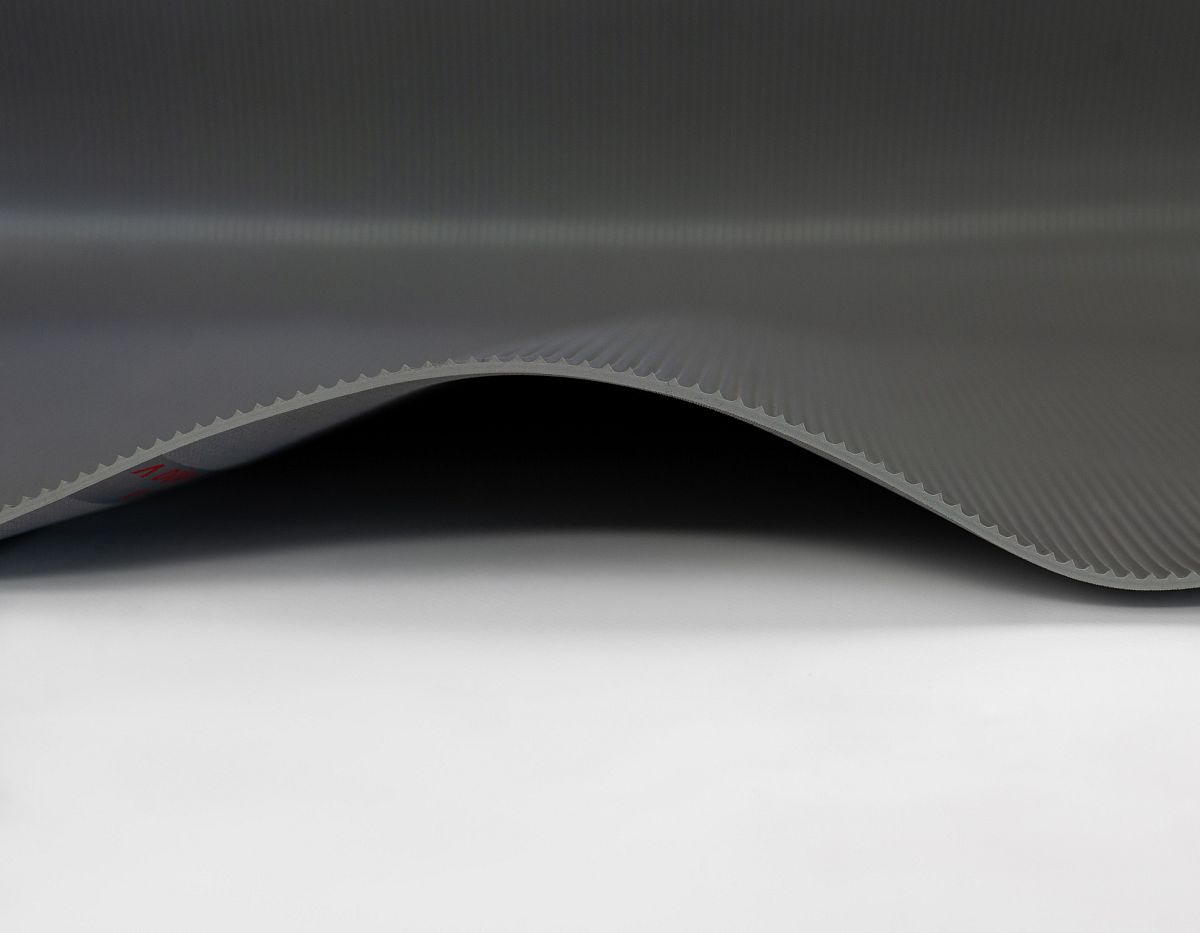

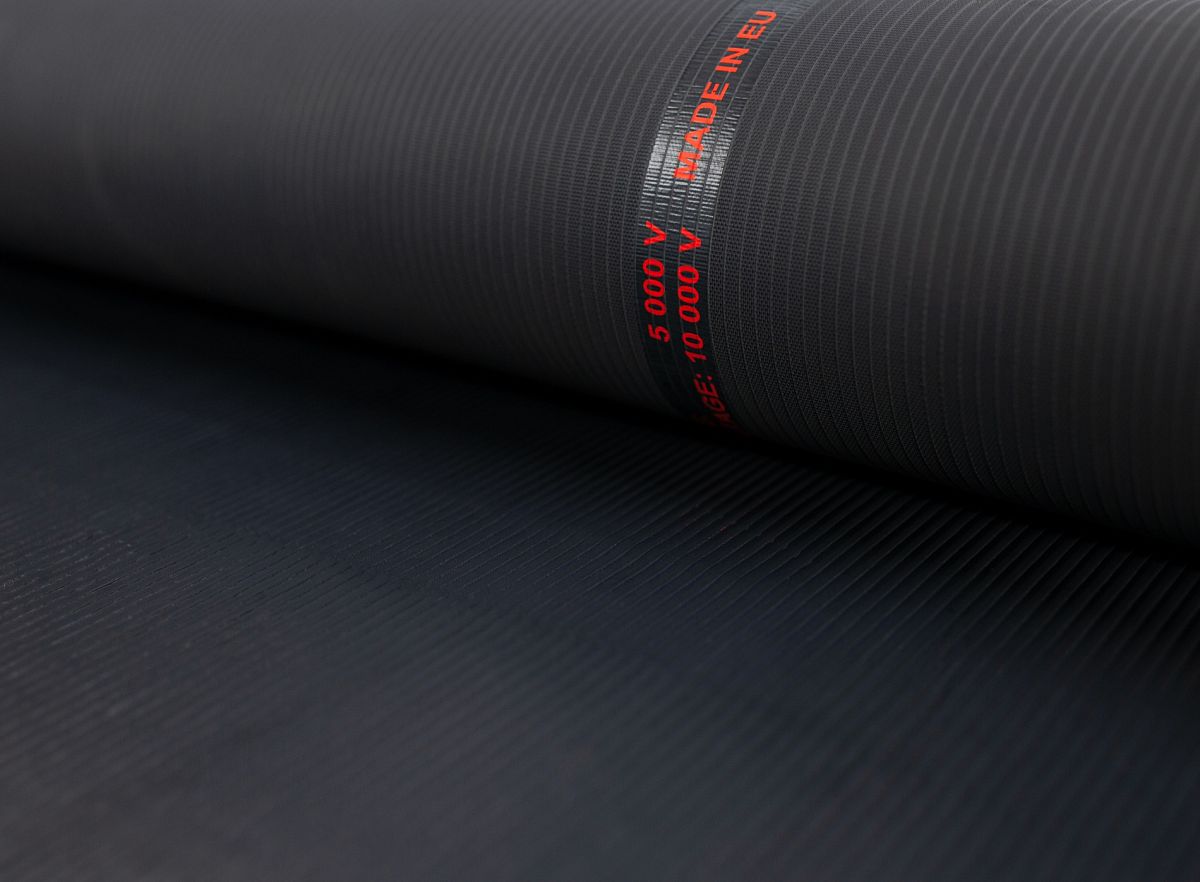

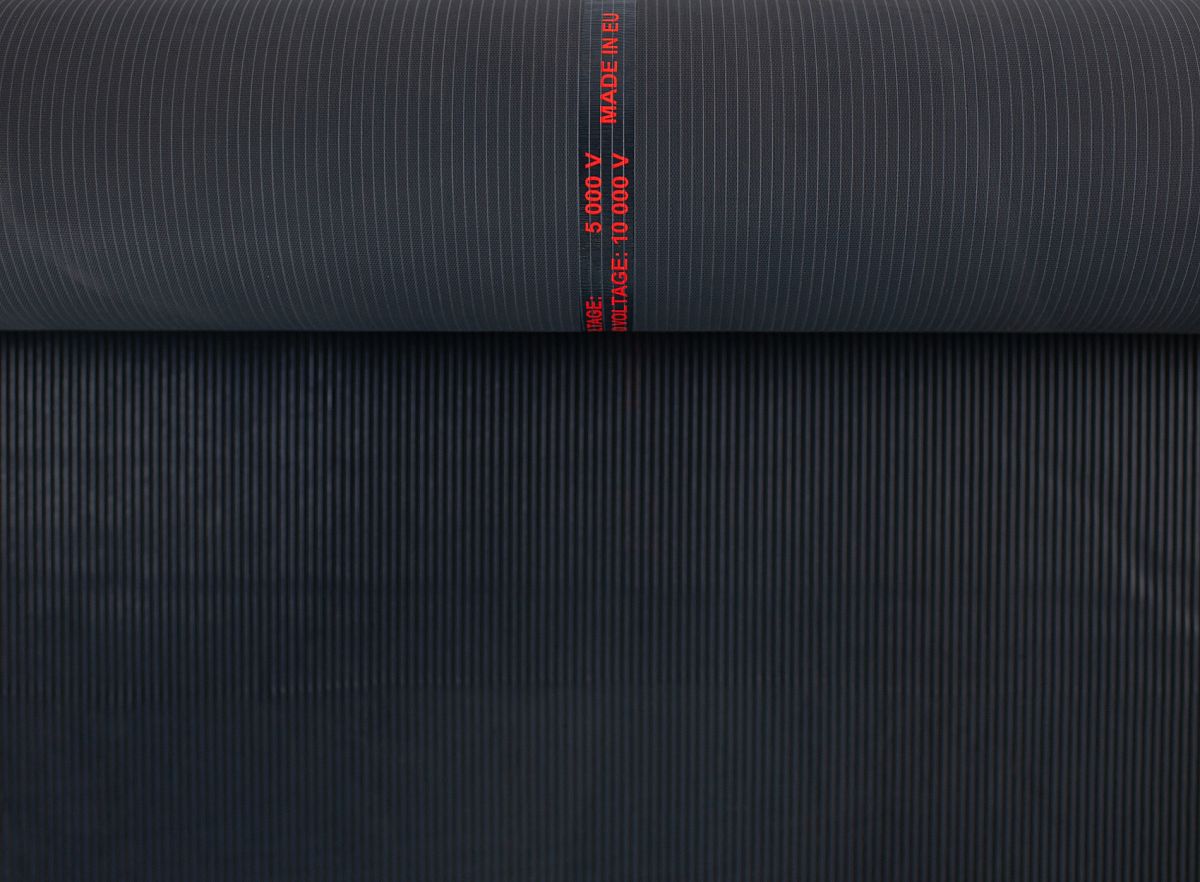

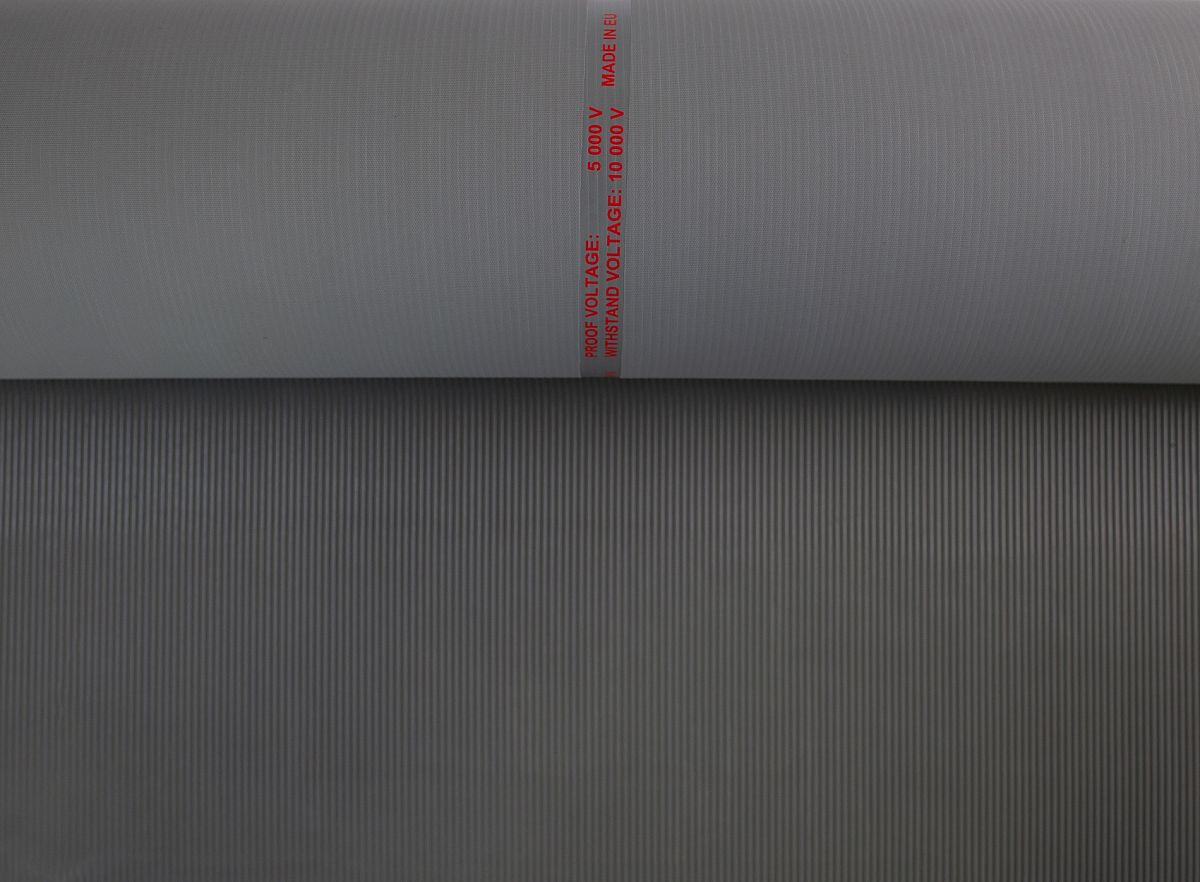

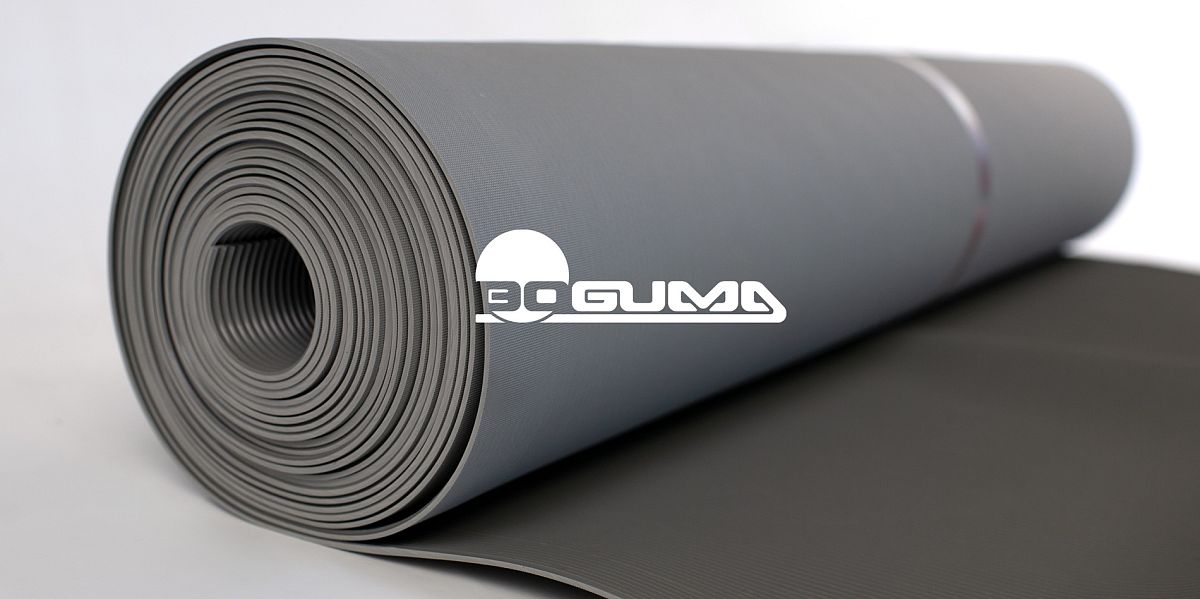

Electrical insulating matting certified according to IEC 61111:2009 in class 0, with an operating voltage of 1,000 V, a test voltage of 5,000 V and a withstanding voltage of 10,000 V, with permanently vulcanized marking tape. Vulcanized elastomer fine grooved is available in gray or dark gray color, 3 mm thick with basic weight 3.3 kg/m2.

Complete your specification:

Step 1


Step 3


Tolerance (+/- 10 mm)

Step 2


Tolerance -

Step 4


Tolerance (+/- 200 mm)

Step 5




Step 6

Step 7



Produkt DK idtrieda 00 - varianty

DK

Id Cislo polozky Stare cislo Skupina Typ Idtrieda Kaucuk Dezen Farba Dlzka Sirka Hrubka Hrubka popis Hmotnost Hustota Pocet vloziek Pocet otlackov
1146 DK_00_01_S7_1_03-0 DEK0-S7-1 DK 00 SBR-NR S7 grey 10 1000 3 (+/- 0,3 mm) 3.3
1147 DK_00_01_S7_1_03-0 DEK0-S7-1 DK 00 SBR-NR S7 grey 10 1200 3 (+/- 0,3 mm) 3.3
1148 DK_00_08_S7_1_03-0 DEK0-S7-1 DG DK 00 SBR-NR S7 dark grey 10 1000 3 (+/- 0,3 mm) 3.3
1149 DK_00_08_S7_1_03-0 DEK0-S7-1 DG DK 00 SBR-NR S7 dark grey 10 1200 3 (+/- 0,3 mm) 3.3
